CW 60

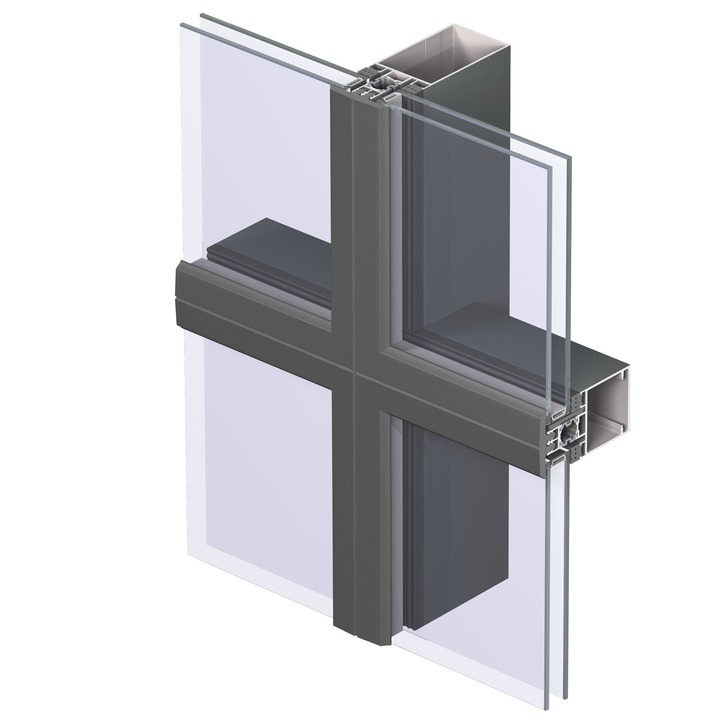

Reynaers CW 60 is a reinforced translucent facade system that allows the application of heavy glazing with a thickness of up to 62 mm. The system has a wide range of aluminium profiles that allow the integration of all kinds of structures in the façade.
The remarkable thermal insulation makes it possible to use the facades in any climatic zone.
Visible width interior: 60 mm
Visible width exterior: 60 mm
Opening elements
Specifications
Max. height vent.:
2000 mm
Max. width vent.:
2500 mm
Water tightness:
1200 Pa
Thermal insulation:
0,8 (Uf) W/m²K
Wind load resistance:
Exxx (> 2000 Pa)
Air tightness max. test pressure:
4 (600) Pa
Max. Glass thickness vent.:
62 mm
